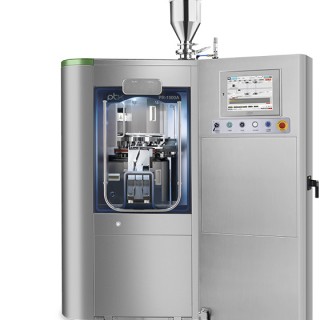

PTK PR1500A

Tablet Press - 223,200 tablets / hr

PR1500A

With its compact design, the PR1500A is a very attractive solution for companies looking to maximize production space and maintain performance and output. Designed for small-scale production it features a fully automatic tablet weight control system, full cam monitoring, complete batch reporting, and auditing through PTKs HMI software.

Removable Turrets
Select the most efficient tooling configurations and maximise output with removable turrets and change over within 30 minutes. Retains all punches in the turret for offline turret preparation.

Fully automatic tablet weight control
Fully automatic weight regulation and single tablet reject at full speed ensures excellent tablet weight conistency. This process is fully tested and validated during installation.


Data Acquisition
The control software is capable of measuring and presenting a wide range of data outputs inc. real time view, full data logging and reporting.


Modular feeding system
Run a broad range of powder types using our oversized chamber rotary or open feeders. Paddle speeds can be set to run at turret speed or Independently to allow optimal flow. Varied paddle designs available including square, round, angled, inserts

   Supported in the UK for over 10 years.

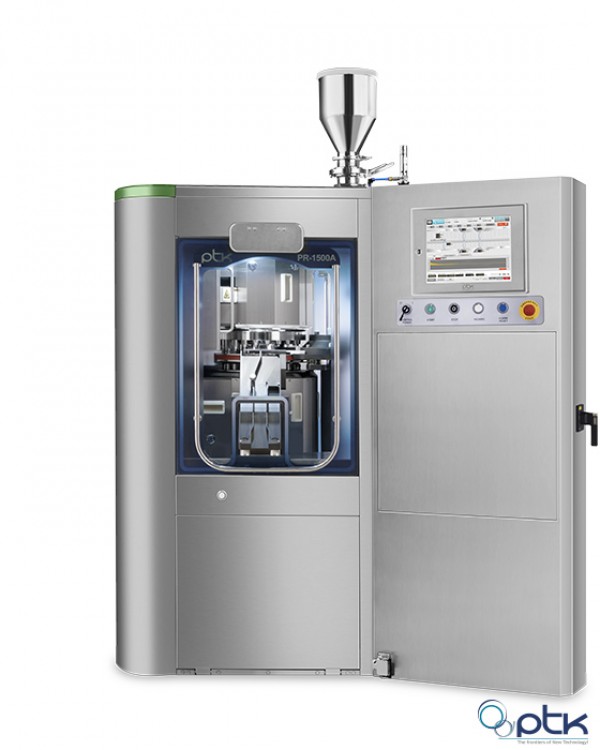

PR1500A Tablet Press

Product features

  • Production speeds up to 223,200 tablets per hour
  • Automatic tablet weight regulation and single tablet reject at full speed with complete batch reporting
  • Multiple tooling formats - D, B, BB, BBS
  • cGMP, CE, CFR Part 11 compliant software
  • Flexible feeder configuration with rectangular, round, angled or spider bladed paddles
  • Full cam, punch and Kn load monitoring
  • Fully automatic lubrication system
  • De-duster, powder loader controlled from HMI, time delay after machine stop
  • Multi UK, European and world wide ref sites
